Quartz sand

Water treatment quartz sand uses natural high-quality quartz ore as raw material, and undergoes a series of production processes such as crushing, stone rolling, water washing and screening, drying and screening.

It has the advantages of fast filtration speed, no mixed layers, good filtration effect, stable effluent water quality, no clogging and no agglomeration.

Send E-mail Get Price

Parameter

Description	Parameters	Description	Parameters
CAS NO	14808-60-7	Density	2.66g/cm
EINECS NO	215-684-8	Bulk density	1.75g/cm³
Specification	0.5-1.2mm,1-2mm,2-4mm,4-8m,8-16mm,16-32mm etc	Boiling point	2550℃
SiO2 %≥	99	Melting point	1480℃
Crushing rate %＜	0.35	Place of Origin	Henan, China
Wear rate %＜	0.3	Usage	Filter
Porosity %	45	Brand Name	Lvyuan
Solubility in hydrochloric acid %	0.2	Product name	Quartz sand Water treatment quartz sand
Mohs hardness	7.5	Effective storage life	12 month

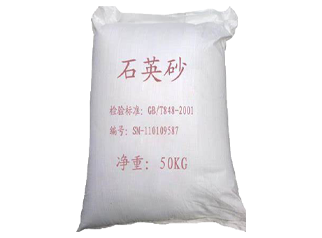

Packaging:

50KGS/PVC with 2 inner layers

Application :

Quartz sand is widely used in various water treatment systems due to its high mechanical strength, chemical stability, uniform particle size, and excellent backwashing performance. Typical applications include:

Recommended Particle Size Range :

The particle size of quartz sand should be selected according to the filtration system and treatment process. Common specifications include:

Size Range (mm)	Application
0.5 – 1.0 mm	Fine filtration layers, RO pretreatment, landscape water circulation
1.0 – 2.0 mm	Industrial and domestic wastewater filtration
2.0 – 4.0 mm	Municipal water treatment, heavy-load filters, primary filtration
4.0 – 8.0 mm	Support layer at the bottom of filters, enhances backwashing effect

FAQ:

Q1: Recommended Filter Media Combinations
A1: Anthracite / Activated Carbon / Ceramsite, Zeolite, Bio-carriers

Q2: How long is the service life of quartz sand filter media?
A2: Under normal conditions, quartz sand can last 2 to 3 years, depending on water quality, backwashing frequency, and system design.

Q3: Is quartz sand suitable for drinking water treatment?
A3: Yes. Our quartz sand meets drinking water grade standards and is safe for use in municipal water supply and purification systems.
