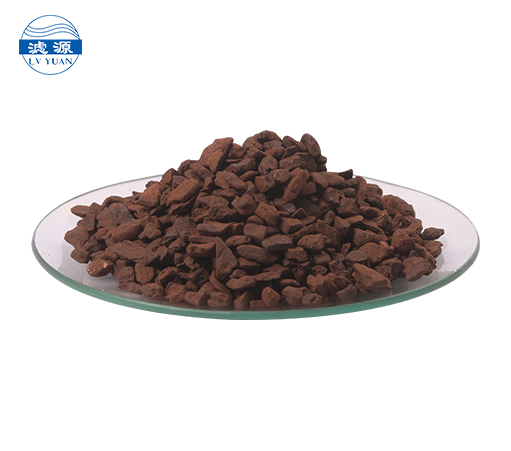

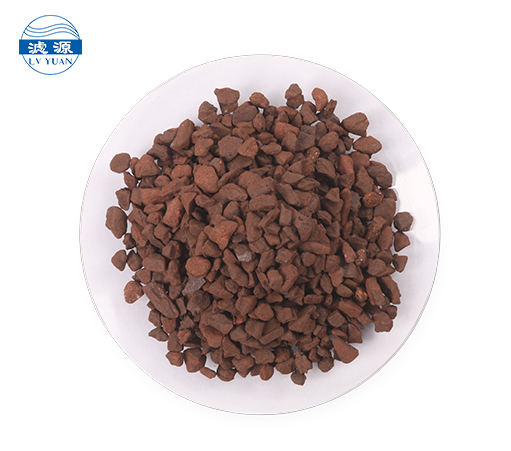

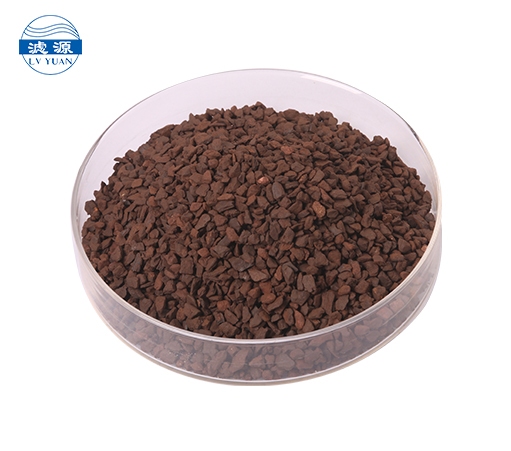

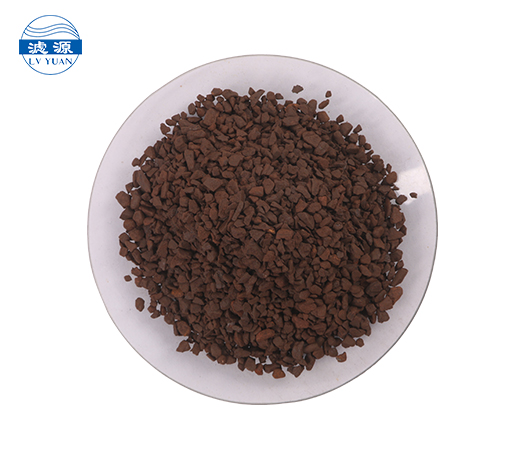

Manganese sand

Manganese Sand is a natural filter media made from manganese ore through crushing and grading processes. It is mainly used for iron and manganese removal in groundwater and industrial water treatment.

It is known for high removal efficiency, stable operation, long service life, and low maintenance cost.

Send E-mail Get Price

Parameter

Description	Parameters	Description	Parameters
CAS NO	7439-96-5	Sediment percentage %≤	3
EINECS NO	231-105-1	Melting point	1480℃
Specification	0.4-0.8mm 0.5-1mm 0.8-1.2mm 1.0-2.0mm 2.0-4.0mm 4.0-8.0mm 8.0-16mm	Place of Origin	Henan, China
MnO2 %	30-50	Usage	Filter
Crushing rate %≤	1.0	Brand Name	Lvyuan
Wear rate % ≤	1.0	Product name	manganese sand Water treatment manganese sand
Density g/cm³	3.6	Effective storage life	12 month
Bulk density g/cm³	2.2

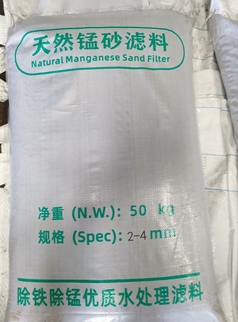

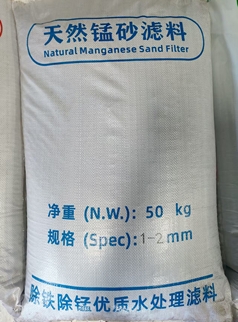

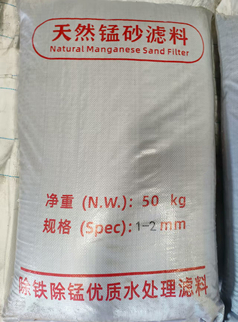

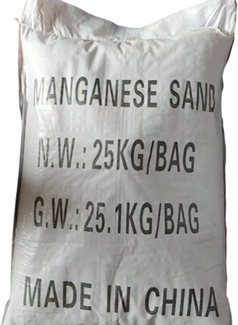

Packaging:

25KGS/PVC with 2 inner layers/ 50KGS/PVC with 2 inner layers
Store in a dry, well-ventilated place, avoiding contact with acidic substances.

Application :

Manganese sand filter media boasts advantages such as high iron and manganese removal efficiency, stable operation, long service life, and low maintenance costs, making it one of the core filter media in traditional groundwater iron and manganese removal processes. Typical applications include::

Recommended Particle Size Range :

The particle size of manganese sand should be selected according to the filtration system and treatment process. Common specifications include:

● Higher Fe/Mn concentration → Larger particle size

● Higher effluent quality requirement → Smaller particle size

● High manganese water requires sufficient aeration

● Multi-layer filter beds are more stable than single-layer systems

Size Range (mm)	Application
0.5 – 1.0 mm	Fine filtration, low Fe/Mn water
0.8-1.6 mm	Groundwater iron & manganese removal
1.0-2.0 mm	High iron and manganese
2.0-4.0 mm	Coarse filtration or top layer
Customized	Available on request

FAQ:

Q1: Recommended Filter Media Combinations
A1: Anthracite / Activated Carbon / Ceramsite, Zeolite, Bio-carriers

Q2: How long is the service life of quartz sand filter media?
A2: Under normal conditions, quartz sand can last 2 to 3 years, depending on water quality, backwashing frequency, and system design.

Q3: Is quartz sand suitable for drinking water treatment?
A3: Yes. Our quartz sand meets drinking water grade standards and is safe for use in municipal water supply and purification systems.

Q4: Is aeration required before using manganese sand?
A4: Aeration is recommended for high iron and manganese concentrations.

Q5: Is manganese sand suitable for drinking water treatment?
A5: Yes, it is commonly used in municipal and rural drinking water systems.
